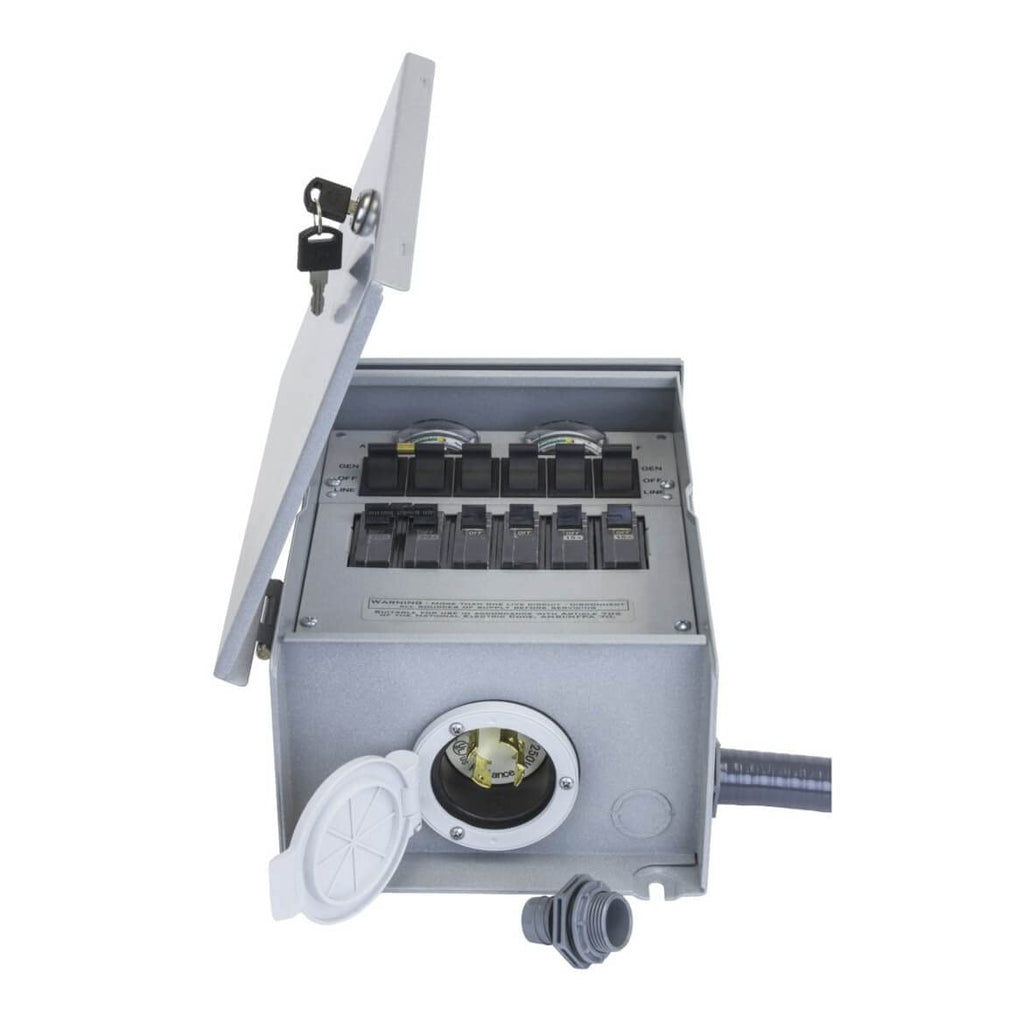

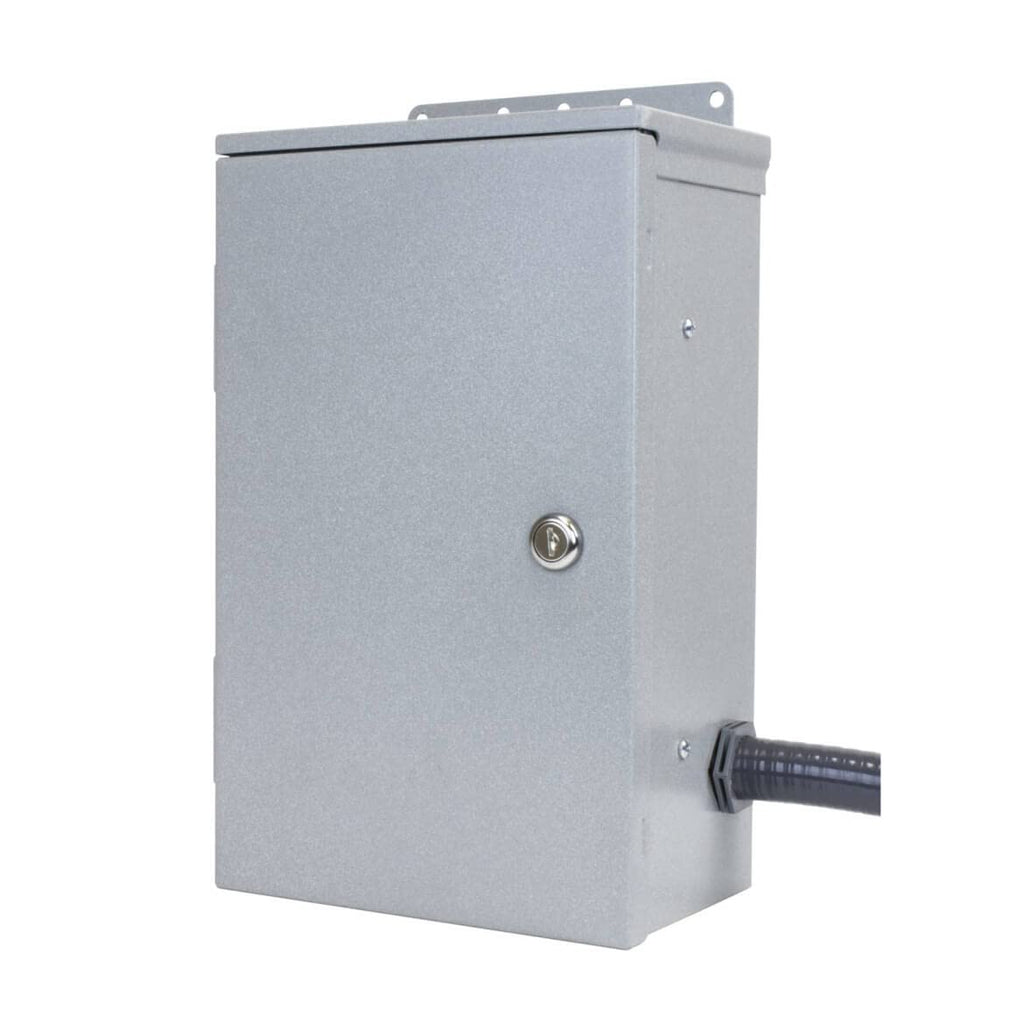

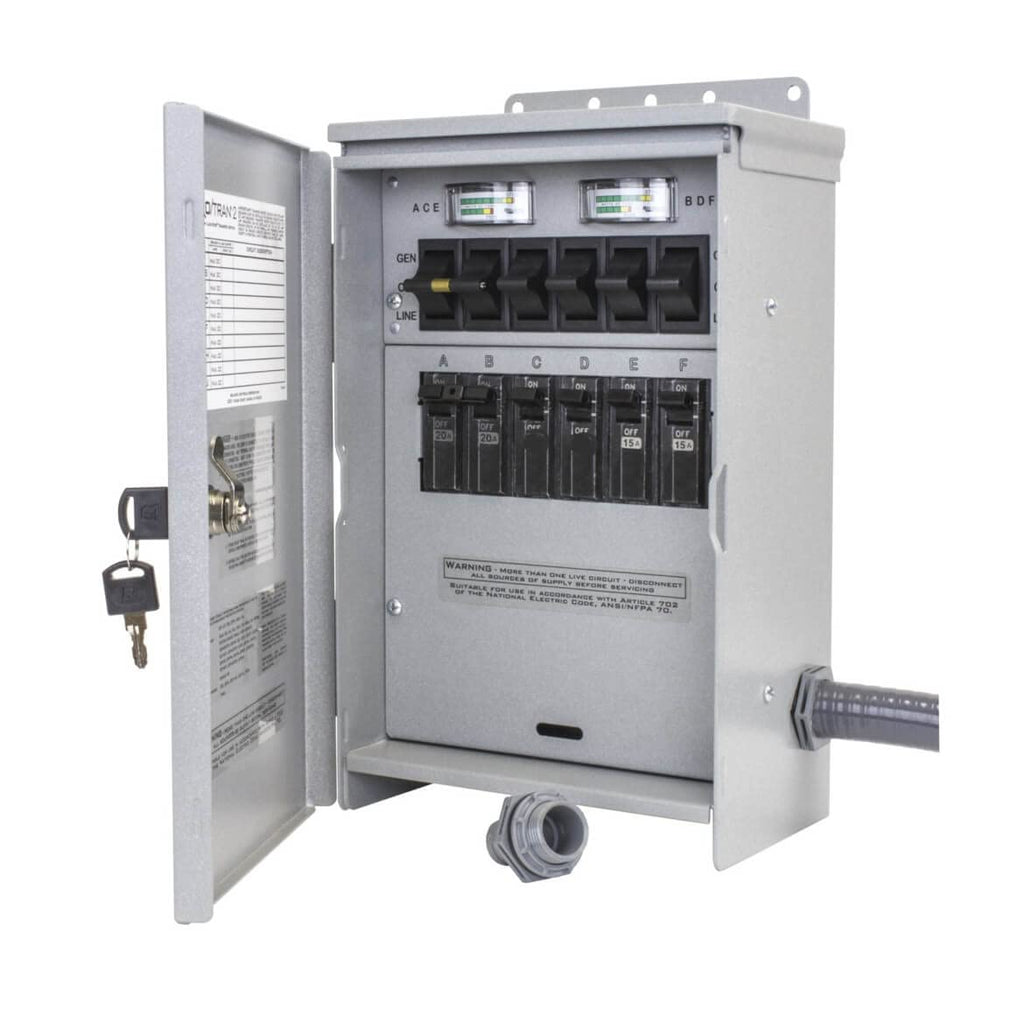

R206A Pro/Tran2 Outdoor 20-Amp 6-Circuit 2 Manual Transfer Switch with L14-20 Power Inlet

R206A Features: -Pro/Tran 2 series is UL listed to UL standard 1008 and is suitable for use in accordance with article 702 of the national electrical code ANSI/NFPA 70. -Made in the USA. Country of Manufacture: -United States. Product Type: -Transfer switch cover. Hardware Finish: -Painted steel cabinet. Finish: -Steel. Dimensions: Overall Height - Top to Bottom: -13'. Overall Width - Side to Side: -8'. Overall Depth - Front to Back: -5'. Overall Product Weight: -18 lbs.

Additional details

• Color : Gray

Features & Specs

• Actuator Type : Hinge Lever
• Circuit Type : 6-way
• Compatible Devices : Generators with L14-20 outlet and up to 20 amps
• Connectivity Protocol : X-10
• Connector Type : L14-20
• Contact Type : Normally Open
• Control Method : Touch
• Control Type : Manual
• Current Rating : 20 Amps
• Mounting Type : Surface Mount
• Number of Positions : 6
• Operating Voltage : 120 Volts (AC)
• Operation Mode : manual
• Switch Type : Manual Transfer Switch
• Terminal : Screw
• Wattage : 5000 watts

Item details

• ASIN : B016DP4Q5U
• Brand Name : Reliance Controls
• Item Weight : 17.8 Pounds
• Manufacturer : Reliance Controls
• Model : R206A
• Part Number : R206A
• UPC : 815181012809

Materials & Care

• Contact Material : Copper
• Material Type : Steel, Alloy Steel

Measurements

• Item Dimensions : 5 x 8 x 13 inches
• Number of Items : 1
• Unit Count : 1.0 Count

User guide

• International Protection Rating : IP00
• Specification Met : UL
